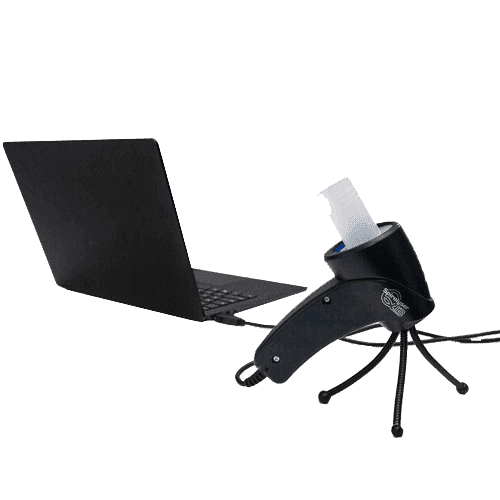

Depisteo Spirolyser® Q13® Spirometer
For over 25 years Depisteo’s head office has chosen the Fleisch type pneumotachograph in the design of its spirometers for its qualities of reproduction and measurement accuracy. A real expertise worthy of a work of craftsmanship, we have achieved our goal of reproducing the technology of this sensor in a single-use version.
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
- Tests: Slow and Forced Vital Capacity, Maximum Voluntary Ventilation, Post-medication
- Sensor: Fleisch type digital pneumotachograph
- Guarantee: 2 years
- Flow Measurement Range: -14L/s to +14L/s
- Volume Measurement Range: 0L to 10L
- Digital Resolution: 15 bits
- Measurement Accuracy: ± 3% maximum
- Cord Length: 9.8 feet
- Storage Temperature: 32 – 122°F
- Temperature for use: 62.6 – 98.6°F
- Atmospheric Pressure: 720 - 780 mmHg
- Humidity: 75% maximum
- Altitude for use: < 6561 Feet
- Voltage: 5VDC (via USB port)
- Power: 200mW maximum
- Reference Standards: IEC 60601-1, IEC 60601-1-2, ATS 2005
- Medical Class: IIa
- Software Safety Class: A
- Applied Part: Type BF
- Size: 3.54x7.08x2.36 Inches
- Device Weight: 0.55 Lbs
