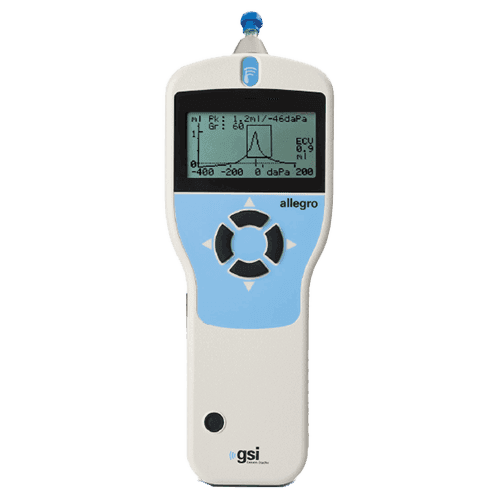

Grason-Stadler Allegro™
The GSI Allegro™ is a handheld screening device ready for any testing environment that requires tympanometry and ipsilateral reflexes. The Allegro offers a four button navigation that allows for quick and reliable testing. Automatic measurements of the middle ear status are completed in seconds using the device’s configurable test settings. The Allegro includes a charging cradle, thermal printer, and carrying case.
Want to learn more about the Allegro?
Visit the Grason-Stadler website for a full breakdown of the features and benefits, along with a variety of educational materials.
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
Tympanometry
Instrument Type: Meatus compensated tympanometer
Analysis Performed: Admittance peak level (in ml); Pressure ofsame; Gradient (in daPa); Ear Canal Volume (ECV) at 200 daPa
Probe Tone Levels and Accuracy: 226 Hz +/-2%; 85 dB SPL +/-2 dB over range 0.2 ml to 5 ml
Pressure Levels and Accuracy: +200 daPa to -400 daPa +/-10 daPa or +/-10% (whichever is larger) over range
Ear Volume Measurement Range and Accuracy: 0.2 ml to 5 ml+/-0.1 ml or +/-5% (whichever is larger) over entire range
Sweep Speed: Typically 200 daPa/sec; dependent on ear/cavity volume
Pressure Limits (Safety Cutout): +600 to -800 daPa
Reflex Measurements
Measurement Modes: Ipsilateral
Reflex Tone Levels and Accuracy: 500 Hz, 1 kHz, 2 kHz, 4 kHz (+/-2%); Configurable over range 70 dB to100 dBHL (4 kHz restricted to 95 dBHL) +/-3 dB, referenced to 2 ml calibration volume; Compensates for measured ear volume
Reflex Detection Threshold and Accuracy: 0.01 ml to 0.5 ml +/-0.01 ml configurable in 0.01 ml steps
Reflex Analysis: Reflex present/absent at each level tested; maximum amplitude of each reflex (seen on printed report & computer report); pressure at which reflex was performed
Pressure Used for Reflex Measurement: Pressure at Tympanogram peak, or 0 daPa
Reflex Tone Duration: 0.6 seconds
