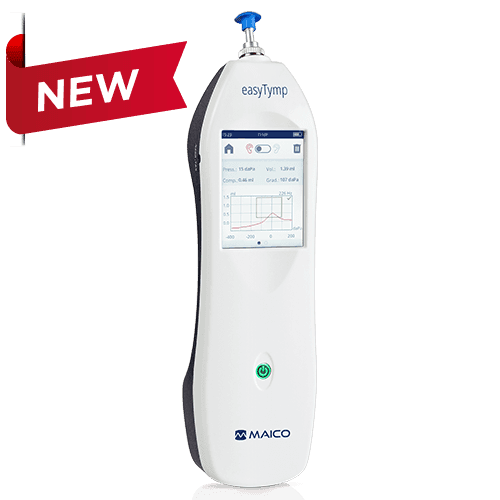

MAICO easyTymp
The MAICO easyTymp™ handheld screening tympanometer supports fast, accurate middle ear screening with intuitive touchscreen operation. Designed for one handed use, easyTymp delivers reliable tympanometry and ipsilateral reflex results within seconds. Suitable for audiology clinics, as well as pediatric, family medicine, and urgent care practices.
Fast, Clear Tympanometry Results
easyTymp automatically starts testing when the probe is correctly positioned, reducing setup time and simplifying middle ear screening. Clear on screen results and Pass / No Response indicators support quick, objective assessment and confident clinical decisions.
Handheld Touchscreen Design
Built for busy clinical environments, this touchscreen tympanometer features a compact, handheld design with a securely mounted probe. The intuitive interface and high-resolution display support smooth navigation, precise test control, and efficient patient flow.
Screening for All Ages
easyTymp supports middle ear screening across patient populations. A standard 226 Hz probe tone is included for routine tympanometry, with an optional 1 kHz probe tone available for infant testing. Ipsilateral reflex testing at 500 Hz, 1 kHz, 2 kHz, and 4 kHz expands screening capability when needed.
Streamlined Workflow & Data Management
Internal memory stores up to 50 patient records for easy review throughout the day. Options include a wireless printer, docking station, and MAICO Sessions PC Software, supporting streamline charging, easy data transfer, and simplifying documentation workflows.
Key Features
- Clear Pass / No Response results
- Touchscreen operation with automatic test start
- Compact handheld design with mounted probe
- 226 Hz probe tone (optional 1 kHz)
- Ipsilateral reflex testing at 500–4000 Hz
- Memory for 50 patients
- Optional printer, docking station, and MAICO Sessions PC Software
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
TYMPANOMETRY MODE
Probe frequency, -intensity: 226 Hz, 85 dB HL
Optional High Frequency: 1 kHz, 75 dB SPL
Pressure range: -400 to +200 daPa
Measurement range: 0.2 ml to 8.0 ml at 226 Hz, 0.9 ml to 16.0 mmho at 1 kHz (optional)
Test time: < 4 seconds
ACOUSTIC REFLEXES
Test frequencies: 0.5, 1, 2, 4 kHz
Test Method: Ipsilateral
Level: 70 dB HL to 100 dB HL
Level Steps: 5 dB, 10 dB
Level settings: Automatic, fixed
GENERAL
Memory: 1 curve per ear and test
Storage: 50 patients
Display: 2.8” Graphical color TFT LCD with capacitive touchscreen
Dimensions / Weight: W x D x H: 65 x 44 x 240 mm/ W x D x H: 2.6 x 1.8 x 9.5 in/ 12oz
Accessories
- Optional Docking Station
- Optional Printer
