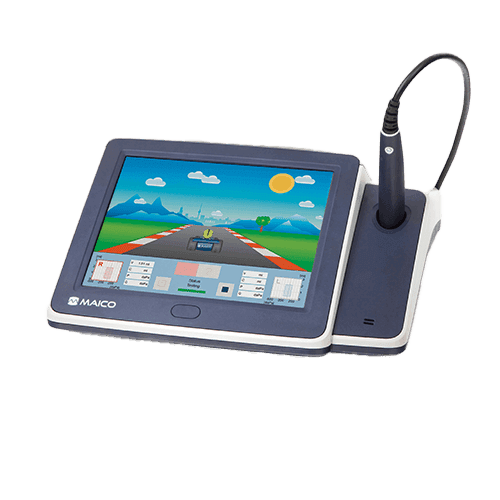

MAICO MI 24 touchTymp RaceCar
Colorful animation keeps children focused
We make immittance testing easy and fast by focusing the child’s attention on an exciting race car animation. The animation distracts the child and turns the test procedure into an engaging and fun experience: the start of a tympanometry or reflex screening becomes the start of a high-speed car race. This makes the screening procedure easier for you and more enjoyable for your little patients!
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
TYMPANOMETRY
Probe Frequency: 226 Hz ± 1 %, 85 dBSPL ± 1.5 dB
Optional High Frequency: 1 kHz ± 1%, 69 dBSPL ± 1.5 dB
Pressure Range: - 600 to + 400 daPa
Accuracy of Pressure: ± 5 % or ± 10 daPa
Volume range: 0.0 to 6.0 ml (compensated)
Compliance range: 0.1 to 8.0 ml at 226 Hz; 0.1 to 15.0 mmho at 1 kHz (option)
Accuracy of Volume: ± 5 % or 0.1 ml
Test Time: 3 - 5 seconds
Features
- Easy, fun middle ear testing for children
- Provides test results within seconds
- Allows testing from infants to adults
- Customizable to suit individual needs
- Full touch-based interface for intuitive handling
- Innovative probe lights allow for patient-focused operation
- Probe tone 226 Hz (optional 1000 Hz)
- Ipsi acoustic reflex 500 Hz, 1 kHz, 2 kHz, 4 kHz (optional contralateral)
- High resolution and quick screen transitions
- Built-in printer
ACOUSTIC REFLEXES
Test Frequencies: 0.5, 1, 2, 4 kHz ± 1 %
Test Methods: Ipsilateral; optional contralateral
Level Ipsilateral: 70 to 105 dBHL
Level Contralateral: -10 to 120 dBHL
Level Setting: Automatic or fixed
Ipsilateral Reflex Test: With AGC
