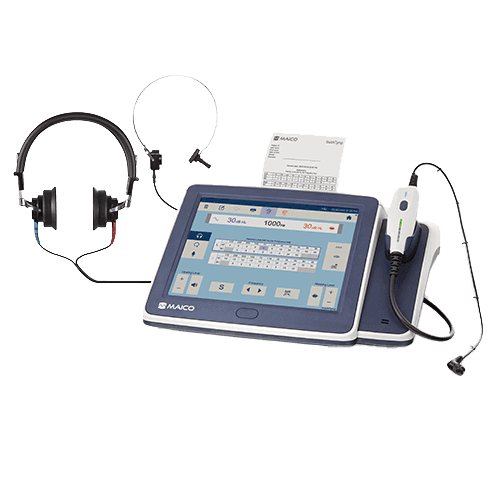

MAICO touchTymp MI 36
The touchTymp MI 36 combines diagnostic middle ear analyzer and audiometry tests in one exceptional device. The full 10.4" touchscreen with its user-friendly interface guarantees a unique intuitive operation and allows quick parameter changes. You can easily switch between the tests without reorganizing from one to another device and benefit from its small footprint when facing limited desk space. touchTymp MI 36 really improves your workflow every day.
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
TYMPANOMETRY MODE
Probe Frequency: 226 Hz ± 1 %, 85 dBSPL ± 1.5 dB; 678 Hz ± 1%, 72 dBSPL ± 1.5 dB; 800 Hz ± 1%, 70.5 dBSPL ± 1.5 dB
Optional High Frequency: 1 kHz ± 1%, 69 dBSPL ± 1.5 dB
Pressure Range: - 600 to + 400 daPa
Accuracy of Pressure: ± 5 % or ± 10 daPa
Volume range: 0.0 to 6.0 ml (compensated)
Compliance range: 0.1 to 8.0 ml at 226 Hz; 0.1 to 15.0 mmho at 678, 800 and 1000 Hz
Accuracy of Volume: ± 5 % or 0.1 ml
Test Time: 3 - 5 seconds
AUDIOMETRY
Test Signals: Pure and warble tone (pulsed and continuous)
Test Frequencies: 125, 250, 500, 750, 1000, 1500, 2000, 3000, 4000, 6000, 8000 Hz (125 Hz excluded from bone conduction test frequencies)
Level Steps: 5 or 1 dB
Hearing Level Range AC: -10 to 120 dBHL
Hearing Level Range BC: -10 to 80 dBHL
Masking Noise: Narrow band and white noise
