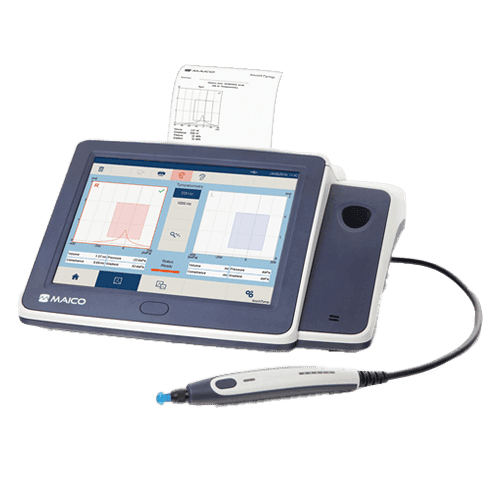

MAICO touchTymp MI 24
With its intuitive touch screen display, the MAICO touchTymp MI 24 performs automatic impedance tests, multi-level reflex screening, and more.
Tests can be performed on any population – from infants to adults – and results are provided within seconds.
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
Specifications
TYMPANOMETRY MODE
Probe frequency, -intensity: 226 Hz ± 1 %, 85 dBSPL (69 dBHL) ± 1.5 dB
Optional: 1 kHz ± 1%, 69 dBSPL (69 dBHL) ± 1.5 dB
Pressure range: -600 to +400 daPa
Accuracy of Pressure ± 5 % or ± 10 daPa
Compliance range: 0.1 to 8.0 ml at 226 Hz
Accuracy of Volume: ± 5 % or 0.1 ml
Test time: 3 - 5 seconds
REFLEX MODE
Test frequencies: 0.5, 1, 2, 4 kHz ± 1%
Test Method: Ipsilateral; optional contralateral
Level Ipsilateral: 70 to 105 dBHL
Level Contralateral: 70 to 120 dBHL with contra phone receiver
Level Setting: Automatic or fixed
Ipsilateral Reflex Test: With and without AGC
Information
- Provides test results within seconds
- Allows testing from infants to adults
- Customisable to suit individual needs
- Full touch-based interface for intuitive handling
- Innovative probe lights allow for patient-focused operation
- Probe tone 226 Hz, optional high-frequency probe tone 1 kHz
- Acoustic reflex frequencies 500 Hz, 1 kHz, 2 kHz, 4 kHz (ipsi- and optional contralateral)
- High resolution and quick screen transitions
- Built-in printer
