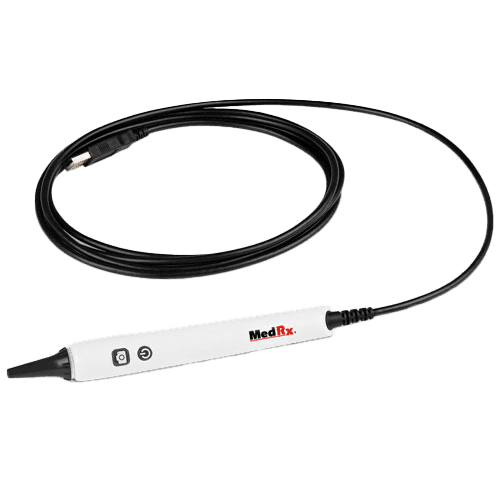

MedRx USB Video Otoscope
The remarkably clear resolution of the MedRx Video Otoscopes is particularly helpful when comparing a clean ear canal with normal eardrum to a canal that has excessive cerumen, foreign bodies, external otitis, PE Tube status, cholesteatoma, TM perforations or other abnormalities.
Store pictures in NOAH, retrieve results easily for followup visits showing the patients their progress.
The MedRx video otoscope provides a real-time, high resolution video feed of your patient’s ear canal and ear drum.
Technical Specifications:
- Model NO: U42M
- Image Sensor: 1/10” High Color Sensor
- Camera diameter: 4.2mm
- Pixel Size: 2.25μm x 2.25μm
- Effective Picture Element: 648(H)X488(V)
- AGC: Auto
- AES: Auto
- AWB: Auto
- Dynamic Range: 68dB
- S/N Ratio: 37dB
- Lens Construction: 1G +2P + IR
- Lens F/NO: F3.8
- Lens View Angle(Fov): Fov (D)60°±5°
- Depth of Field: 10mm – 30mm
- Light Source: 6pcs High Luminous White Color LED
- Power input: DC 3.6 ~ 5V
- Output System: USB Output
- Power Consumption: 0.5W
- Operating Temperature: -10°C to +35°C
- Operating Humidity: 30%~90%Rh
- TV Distortion: < 5%
Features:
- User Friendly, USB Connection, Plug and Play Technology
- Capture, View and Store Digital Images
- Perform an Otoscopic Examination
- View the Probe Microphone Tube in the Ear Canal
- Clear and Sharp Images
- Conveniently Shows a List of Captured Pictures, Comments and Previews of the Selected Images
- NOAH™, TIMS, Blueprint OMS and Sycle Compatible
- An Integrated Video Module is Available in MedRx Software
- Ideal for Cerumen Management
