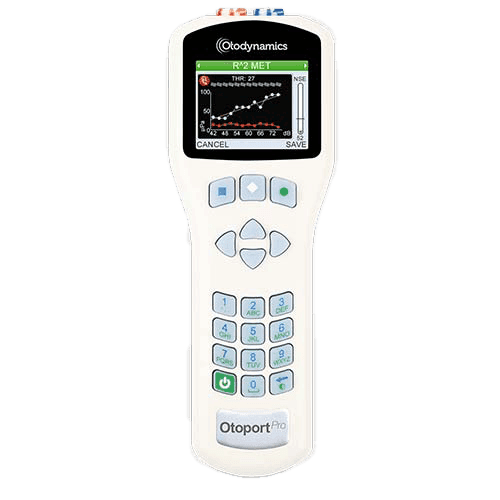

Otodynamics Otoport Pro Advanced Clinical
Benefit from the full OAE range and power of the Otoport Pro Advanced Clinical. Boasting 16 fully customizable protocols, the Otoport Advanced Clinical model will perform in the most demanding of clinics. Incorporating all the functions of the Otoport Pro Screener and Clinical models, the Advanced clinical has three additional investigational OAE functions. DP ZOOM explores DP-gram features at up to 100 points per octave resolution. Stimulus levels are configurable in 1dB steps. DP GROWTH provides multi stimulus level DPOAE measurements at any frequency 1-8kHz. MULTI TEST function linking up to 4 loop-able test protocols allowing you to build a sequence of different DP and/or TE tests. TEOAE is also included as standard with additional high-resolution spectral analysis from 0.5 to 6kHz.
Take advantage of all Advanced Clinical’s sophisticated tools to go beyond routine clinical DPOAE recordings towards clinical research investigations. Capture detailed test information including physiological responses for in-depth analysis in our Otolink PC software, which can also export data for research. Otoport Pro records high resolution DPOAEs from 0.5kHz to 8kHz. Sweep frequency automatically or under manual control to focus on difficult frequencies. Achieve unrivalled frequency resolution with DP Zoom. Explore cochlear function with input-output measurements using the Advanced DP Growth test. Link up to 4 tests together in a repeatable test sequency using the MULTI-TEST macro programmer. You can add AABR infant screening, offering two AABR protocols customizable between 35 - 45dBnHL. Extend to 60dBnHL for non-screening training/research use. Display the emerging ABR waveform test in real time and detailed examination post test.
DPOAE
- Extensive configurability including
- DP Zoom to 100pts/octave
- DP Growth I/O with scissor mode
- 12 frenquency DPOAE
- Mutli test macro (4x protocols)
Config Norms
- Rapid DPOAE screening mode
- Easy-to-use pass/refer result
- Automatic test progression and interpretaion Large searchable database
- Access to selected research function for IRB approved projects.
TEOAE
- Up to 6kHz with configurable norms.
- Choice of response window.
- Gold standard TEOAE Quickscreen
- Easy-to-use pass/refer result
- Automatic test progress and interpretaion Large searchable database
AABR
- Superior pretest environment, with
- power-line & individual impedance analysis.
- Fast pass/refer result
- Choice in stim delivery ear cup/insert
- Automatic test progress and interpretaion
- Real time ABR waveform view
- ** 60 dBnHL for training
- Extendable FSP for AABR waveform capture.
Request a Quote
We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available. Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers. (Completing our online form does not sign you up for electronic advertising.)
DPOAE
TEST CONFIGURATION 1 Protocol, 4 Parameters
FREQUENCY RANGE 1, 2, 3, 4, 6kH
FREQUENCY RESOLUTION Half octave
FREQUENCY RATIO 1.22
STIM LEVEL 60/55 or 65/50 or 65/55
DISPLAY Graphic progress indicators / Numeric / Pediatric distraction / Line Graph
PASS CRITERIA 2, 3 or 4 frequencies
PASS SNR 6dB (Fixed)
TEOAE
TEST CONFIGURATION 1 Protocol, 4 Parameters
FREQUENCY RANGE 1, 1.5, 3, 4kHz
FREQUENCY RESOLUTION Half octave bandwidth
STIMULUS LEVELS Fixed 84 dBSPLpe
PASS CRITERIA 2, 3, or 4 half octave bands, or wide / narrow bands
PASS SNR 6dB (Fixed)
ADD
AABR
TEST CONFIGURATION 2 Protocols, 9 Parameters
STIMULUS LEVELS (dBnHL) 30 to 45 (Δ1dB)**
STIMULUS TYPE Chirp and Click
PASS CRITERIA Configurable FSP with neonatal waveform template
- Light weight & Easy to use
- Long battery life over 250 tests per battery charge
- Large storage, database holds 4000 tests
- Extensive patient data fields
- Create multiple user profiles with Admin management and security
- Customizable QA calibration test area & history view
- On-screen notification of poor probe fit, high noise level and ringing stimulus
- Clear test progression notification & probe fit and noise level indicators
- Pause & resume testing function
- Each test is saved with the actual physiological response
- Probe test function and ID tracking
- Programmable work-list
- Transfer data wirelessly to the Otolink suite software
- Automated self-test system when powering on Otoport
- Print wirelessly to the Otodynamics optional mini printer
CPT Codes
- 92588, 92587, 92558
- (92650 with ABR option)
