micro-audiometrics-corp-earscan-3-manual-audiometer-es3m

Micro Audiometrics Corp Earscan 3 Manual

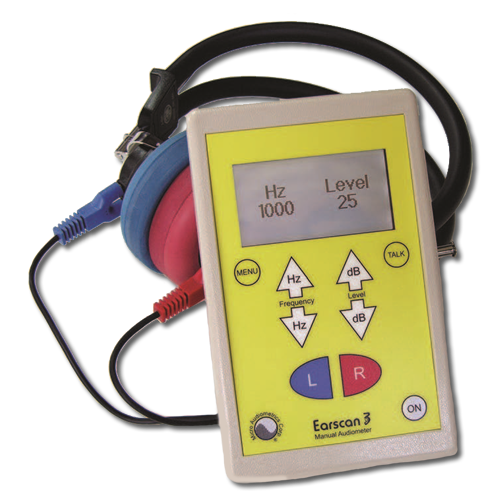

With the Earscan 3 Manual Audiometer (ES3M), simply select and save test frequencies and levels to meet your requirements.

Operator-to-patient communication is built in, allowing test instructions to be presented via the headset. Also, its compact design takes up little space and makes it easy to travel with.

Get a quote  Brochure

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote

Specifications

Dimensions: (L x W x H) 5.8 x 3.6 x 1.3 in ( 14.7 x 9.1 x 3.3 cm)

Weight: 9.8 ozs. ( 0.28 kg)

Power: 4 AA alkaline batteries, AC Adapter

Display: Backlit 128 x 64 Graphic LCD

Standards: ANSI S3.6-1996

Warranty: 5 year, limited

Audiometry specifications

Frequencies: 250, 500, 1K, 2K, 3K, 4K, 6K, 8K Hz

Intensity Range (TDH-39): -10 dB to 80 dB HTL

Step Size: User selectable, 5db increments

Presentation Mode: Pulsed or Continuous

Frequency Accuracy: +/- 1%

Level Accuracy: +/- 1 dB

Distortion: < 0.5%
