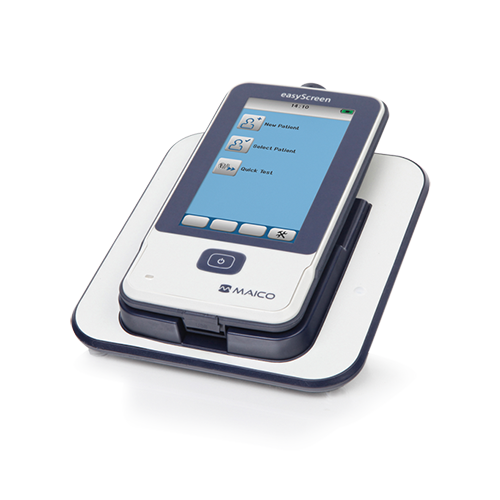

MAICO easyScreen

With our new easyScreen we unite automated ABR, DPOAE and TEOAE screening capabilities in one device for the first time in MAICO history.

easyScreen combination ABR/OAE, for newborn hearing screening. Design to lighten your daily workload in many ways. Small and light-weight, it fits in the palm of your hand. The resistive 4.3” touchscreen makes operation simple even when wearing medical gloves. Achieve accurate results with very fast test times with only a few taps.

Get a quote  Brochure

Datasheet  Supplies

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

ABR

Stimuli CE-Chirp®
Stimulus rate ~90/s
Test mode monaural or binaural
Level 35 dB nHL
Impedance test Automatic pre-test
Test duration 10 sec to 180 sec
Artifact rejection level 100 μV
Transducer IP30 with eartips or EarCups™

Preamplifier

One Channel 3 electrode cables (black, yellow and white)
Gain 72 dB
CMR Ratio >110 dB at 100 Hz
Dimensions 3 in x 2 in x 1 in
Weight 3 oz

Features

  • Fast and easy ABR + OAE hearing screening
  • Powerful ABR detection algorithm for testing within seconds
  • Truly intuitive user interface
  • On-screen guidance; i.e. probe fitting feedback, noise monitoring
  • Small and lightweight
  • Large color touchscreen for comfortable navigation
  • Very short boot-up time and long battery life
  • Cradle for wireless charging
  • HearSIM™ patient database and device manager
  • Upgradeable to easyScreen BERAphone in 2018

Standard components

• easyScreen
• Charging cradle
• Power supply
• USB cable
• Preamplifier
• Electrode lead wires
• Carrying case
• Starter kit
• Cleaning cloth
• Stylus
• Neckstrap
• HearSIM™ PC software
• Transducer (IP30 and OAE probe for DP or TEOAE)

Optional components

• Label printer
• Cart
