maico-mb11

MAICO MB11

One of the fastest automated newborn hearing ABR screeners on the market, the MB11 from MAICO features CE-Chirp Stimulus, automatic impedance check, and a USB connection for power supply and data transfer.

Built with integrated electrodes, this ABR hearing test device produces reliable results within seconds, and saves costs on disposables.

Get a quote  Datasheet

MB11 Supplies

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

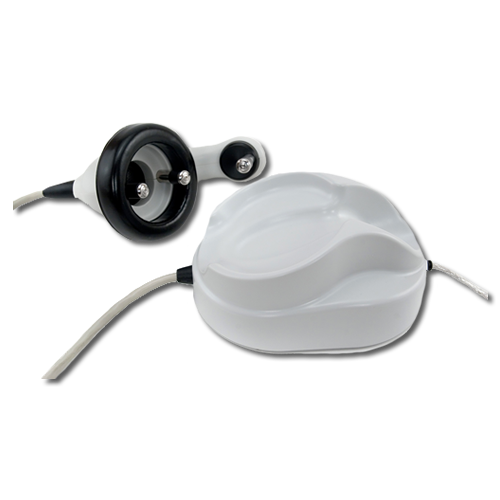

MB 11 BERAphone®

  • Standards: IEC 601-1, IEC 645-3
  • Stimulus type: CE-Chirp Stimulus
  • Stimulus rate: 93/s
  • Stimulus intensity: 35 dB nHL
  • Sample rate: 16 kHz
  • EEG filter: 125 Hz – 1.25 kHz
  • Quality control: Integrated LED on BERAphone® and display in software with signal quality or with EEG display
  • Operating conditions: + 59 to +95°F, (+15 to +35°C); Maximum humidity 75%
  • Storage conditions: +41 to +122°F, (+5 to +50°C); Maximum humidity 90%
  • Speaker: BERAphone®: integrated, dynamic wideband speaker (8Ω)
  • Electrodes: BERAphone®: reusable, stainless steel electrodes with gel protectors.
  • Preamplifier: Integrated, 87 dB amplification (23,000 x)
  • BERAphone® weight: 10.59 oz, (300 g)
  • USB box weight: 5.83 oz, (165 g)
  • USB box dimensions: 4.73 x 3.55 x 1.19 in, (12 x 9 x 3 cm)
  • Power supply: via USB port of computer
  • Power consumption: max 400 mA
