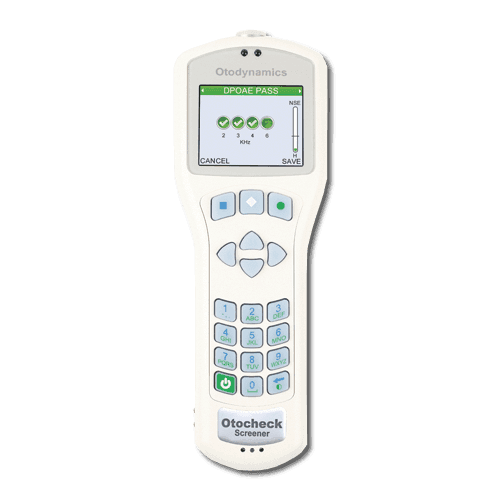

Otodynamics Otocheck Screener

An ultra-fast and portable OAE hearing screener, the Otocheck Screener from Otodynamics features easy “press-and-go” operation and easy to interpret PASS/REFER results.

With an attractive color display and PC capabilities, it is an ideal option for a variety of hearing screening programs.

Get a quote  Brochure

Screener Supplies

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

  • User interface: Display: 65K color LCD, QVGA resolution. Input: Alphanumeric keypad with cursor control and menu softkeys.
  • Languages: English, Spanish, French, Turkish, Portuguese, Italian, German.
  • Test capacity: More than 250 test cycles or one full working week (typical use). 4GB non-volatile memory.
  • Hardware options: Wireless printing/internal barcode reader/RFID scanner.
  • Data acquisition: Analogue interface: 2 x 16bit (output) and 1 x 16 bit (input) channels.
  • Frequency response: 160Hz to 12KHz (electrical).
  • Electrical interfaces: Probe connector (Otodynamics 8-pin). Data/charge connector - USB 1.1/2.0 compatible PC connection for data and charging, also accepts Otodynamics PSU.
  • Power: Internal rechargeable 3.7v, 1000mAh lithiumpolymer battery.
  • Charge time: 3 hrs to 90%. Approx 4 hrs to 100% capacity. Intelligent multi-level power control.
  • Maximum power use: Testing - 630mW. Charging - 2.5W. Dimensions: 7.6” x 2.7” x 1.2” (195mm x 70mm x 30mm). Weight: 7.5 oz (214 g).
  • Operating environment: For indoor use at 41 to 104°F (5-40°C). Max humidity 80% up to 88°F (31°C) decreasing linearly to 5% RH at 104°F (40°C).
  • Transport and storage environment: 32-104°F (0°C to 40°C).
  • Pressure range: 23-101KPa.
  • Humidity: 10% to 90% non-condensing.

Specifications general

  • Satisfies CPT codes 92558 and 92587
  • A simple to use newborn and pediatric screener with an intuitive interface
  • Automatic pass/refer, low cost consumables and long battery life make this the ideal OAE screener
