Amplivox 302

Amplivox Otowave 302

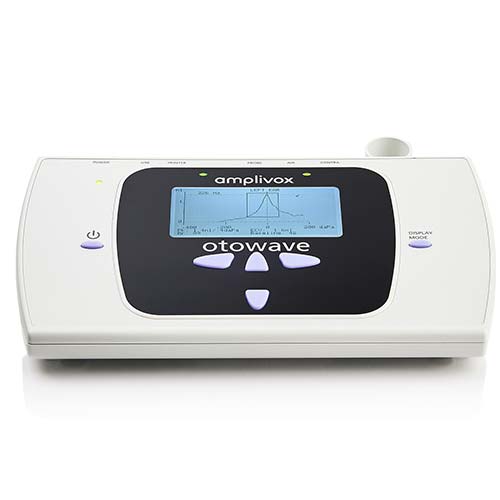

The Amplivox Otowave 302 is a desktop solution for reliable and objective middle ear measurements.

Get a quote  Brochure

Otowave 302 Supplies

Request a Quote

We understand that you have a choice when it comes to choosing your equipment and are dedicated to providing you with the highest quality instrumentation available.Contact us now for your free, no obligation quote and discover why we are the preferred Authorized Distributor and Service Provider to the world’s leading manufacturers.  (Completing our online form does not sign you up for electronic advertising.)

Request Quote


Specifications

Tympanometry Measurements

  • Probe tone and accuracy: 226Hz +/-2%; 85dBSPL +/-2dB 1000Hz +/- 2%; 79dBSPL +/-2dB (H-Option) over ear canal volume range
  • Pressure range and accuracy: +200daPa to -400daPa +/-10daPa or +/-10% (whichever is larger) over range 0.1ml to 5ml
  • Direction of sweep: Positive to negative
  • Volumetric range and accuracy: 226Hz: 0.2ml to 5ml 1000Hz: 0.1ml to 5ml +/-0.1ml or +/-5% (whichever is larger)
  • Analysis performed: Admittance peak level in ml (226Hz) or m (1000Hz) & pressure at peak; Gradient in daPa (for 226Hz); Ear canal volume (ECV)
  • Measurement sweep speeds: Selectable: 100, 200 or 300 daPa/sec

Reflex Measurements

  • Reflex Type: Ipsilateral, contralateral or both
  • Reflex Frequencies: Ipsilateral and contralateral: User-configurable. Selectable from: 500Hz, 1kHz, 2kHz & 4kHz (+/-2%)
  • Reflex Levels (Max Levels): Ipsilateral: 70dBHL to 100dBHL (+/-3dB) Contralateral: 70dBHL to110dBHL (+/-3dB)
  • Reflex detection threshold: 0.01ml to 0.5ml +/-0.01ml (configurable in 0.01ml steps)
  • Analysis performed: Reflex maximum amplitude and pass/fail at each test level

Key Features:

  • Fast, accurate impedance measurements
  • Intuitive use
  • 226Hz or 1000Hz tympanometry (H-Option)
  • Optimized, user selectable measurement speeds
  • Ipsilateral and contralateral reflex tests
  • Easy to read large graphics display
  • Portable
  • PC connectivity and optional portable printer

Data management

  • Internal database: 36 patient records with patient record identifier
  • Printing direct to printer: Optional designated high speed portable thermal printer
  • PC database interface: The Amplivox NOAH Impedance module is included for data transfer to a NOAH database using a USB connection
  • Viewing and printing from a PC: The Amplivox TympView application is available to transfer data to a PC using a USB connection and then view and print the test results

Physical Data

  • Power: Mains: 100-240Vac; 50/60Hz via Amplivox mains adapter (approved to medical safety standards)
  • Dimensions (mm): Base unit: 270 wide x 175 deep x 70 high (excluding connections) Probe: 130 long x 25 (max) diameter
  • Weight: 302 tympanometer: 760g  Probe: 115g (incl. connecting cable)

Standards

  • Safety: IEC 60601-1 (including national requirements for US and Canada)
  • EMC: IEC 60601-1-2
  • Impedance: IEC 60645-5 Type 2 tympanometer ANSI S3.39 Type 2 tympanometer
  • CE Mark: Complies to EU Medical Device directive
